Notation

Unless otherwise specified, anything prefixed with a $ character in a code block is a command, and all other content is command output. ... may be used to snip irrelevant output for brevity. # is used as an inline comment, and is neither a command nor output.

Most flags have both short and long forms. For instance, the flag to get the program version may be specified by either -V (capital V) or --version. This document will mostly provide flags in their long form, as their purpose is always more clear that way.

Note: All of the command syntax assumes that you have added the executable to your path, which is highly recommended. If you have not, make sure you prefix all invocations with the binary's qualified path, like in the following example, where grader is located in the ~ directory:
$ ~/grader lab1-2

...

Students Only

Example usage:

$ grader lab1-2

Remarks: More coming soon... Read the output of --help for now

Professor Only

Warning: Behavior is undefined if multiple students have the same first and last names.

Example usage:

$ profgrader lab1-2 --search-path ~/Documents/lab1-2-submissions --database ~/Documents/students.csv

Here is an example students.csv database:

Doe,John
Doe,Jane
De La Cruz,Carlos
O'Reily,Jack Bryan

See more info on the specification of a database.

Example usage without a database:

$ profgrader lab5-3 --search-path ~/Documents/lab5-3-submissions

See more info on not providing a database.

Short and Long Form Output

To change output verbosity, invoke with one of the -q|--quiet or -v|--verbose flags.

$ profgrader lab1-2 -q
Jane Doe: Output score 100.00% (7/7 points)
John Doe: Output score 71.43% (5/7 points)
Alice Liddell: Could not locate executable
Bob Roberts: Output score 57.14% (4/7 points

$ profgrader lab1-2 -v
==================================================================================================
                                        Student: John Doe

./doejohn_1234_0000_lab1-2.out
--------------------------------------------------------------------------------------------------
Test Case: putch
--------------------------------------------------------------------------------------------------
Requirement PASSED : putch(&"\x00") runs
  putch("\x00")
  Where:
    putch("\x00") := void

Requirement PASSED : putch(&"\x00") -> stdout = '\x00'
  ctx.get_stdout() == first_char
  Where:
    ctx.get_stdout() := "\x00"
    first_char := "\x00"

Requirement PASSED : putch(&"#") runs
  putch("#")
  Where:
    putch("#") := void

Requirement FAILED : putch(&"#") -> stdout = '#'
  ctx.get_stdout() == first_char
  Where:
    ctx.get_stdout() := "\x00"
    first_char := "#"

...

Output score 71.43% (5/7 points)
--------------------------------------------------------------------------------------------------
Tests       :      1 total |     0 passed |     1 failed
Requirements:      7 total |     5 passed |     2 failed
==================================================================================================
...

Student Database

The student database contains a list of students' first and last names, and is used to aid in locating student lab submissions as well as to provide diagnostics for students with a missing submission. It is recommended to provide a student database; see not providing a database for more info.

By default, a database named students.csv in the current working directory will be used if it exists. To specify a database manually, provide the --database argument, like as follows:

$ profgrader lab1-2 --database ~/my-custom-database.csv

Database Specification

A student database is a Comma-Separated Values (CSV) file. Where reasonable, the official CSV specification, RFC1480, is followed. Requirements 2.1, 2.2 and 2.4 are conformed to, except that lines may be terminated with CRLF (\r\n, i.e. Windows line endings) or simply LF (\n, i.e. Unix line endings). The remaining requirements are disregarded due to unnecessary complications imposed for our very simple use case.

Each record of the database is a single line with the student's last and first name(s), in that order, separated by commas. Spaces and special characters other than a , (comma) are permitted within each of these two fields. This is necessary if, for instance, a student has multiple first or last names, or a compound name with a - (hyphen). Here is an example set of student names, and a corresponding well-formed database:

First Name(s)	Last Name(s)
John	Doe
Jane	Doe
Anna Leigh	Waters
Alice	Lidell
Billie-Rose	Tao
Kevin	De La Cruz
Jack	O'Reily

Doe,John
Doe,Jane
Waters,Anna Leigh
Lidell,Alice
Tao,Billie-Rose
De La Cruz,Kevin
O'Reily,Jack

To understand how student files are matched based on this database, please see File Matching.

Not Providing a Database

Without a database, profgrader will search for submissions according to the specified assignment and file matcher RegEx (see File Matching). By default, the searching behavior is essentially identical to if a database had been provided, except that a student name may be matched by any sequence of alphabetic characters.

For example, the following invocation of profgrader will only match the files doejane_0000_0000_lab1-2.out and doejohn_0000_0000_lab1-2.out.

$ ls
doejohn_0000_0000_lab1-2.out    liddellalice_0000_0000_lab3-1.out
doejane_0000_0000_lab1-2.out    robertsbob_0000_0000_lab5-3.out

$ profgrader lab1-2

File Matching

Files are matched based on a Regular Expression (RegEx). This RegEx is special because there is a special field specifier syntax which is evaluated before the RegEx itself. This syntax is specified surrounding a field name in `` (backticks). Here are the possible field names and what each of them are substituted with:

Field Name	Substituted with
firstname	student's first name in lowercase with all spaces removed
lastname	student's last name; same transformation as above
base	basename of the lab executable
ext	file extension of the lab executable

Here is the default RegEx, pre-substation:

`lastname``firstname`_\d+_\d+_`base`\.`ext`

If we had, for example, a student Kevin De La Cruz and were searching for lab1-2.out, the RegEx would look as follows after substitution: delacruzkevin_\d+_\d+_lab1-2\.out This would match any of the following files:

delacruzkevin_0_0_lab1-2.out
delacruzkevin_12345_999999_lab1-2.out
delacruzkevin_12749261148_1284337922_lab1-2.out

RegEx matching uses a Modified EMACScript standard. For any basic expression, however, this is entirely unnecessary to understand and the RegEx will simply work as expected. If in doubt, regex101.com is a great place to test your RegEx.

Remarks: More coming soon... Read the output of --help for now

Advanced Usage

For details on all supported arguments, use the --help flag.

$ grader --help

...

To check what version of the library you have, use the --version flag. When possible, versioning adheres to the semver spec. The field after -g is the hash of the latest git commit when built.

$ grader --version

AsmGrader v0.0.0-g123456789abcdef

Output Verbosity Level

To increase or decrease the level of output verbosity use the -v|--verbose or -q|--quiet flags, respectively. These flags may be repeated. --silent is an alias for the minimum level of verbosity.

$ grader <lab-name> --verbose
...
$ grader <lab-name> --quiet
...
$ grader <lab-name> -vvv
...
$ grader <lab-name> -qq
...

# etc. You get the idea

$ grader <lab-name> --silent
<no output>

Description of Levels

Each level includes all output from levels below, possibly formatted a little differently e.g., Setting the verbosity to All results in all output described in: Summary, and Quiet (though not the retcode from Silent)

Silent

Student - Nothing on stdout. Program return code = # of failed tests
Professor - Nothing on stdout. Program return code = # of students not passing all tests

Quiet

Student - Overall test results only (# of tests and requirements passed/failed)

Professor - Per-student score only (percentage and number of tests passed + failed)

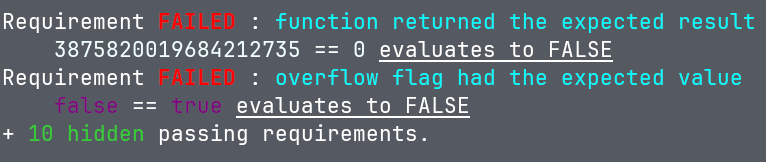

Summary (default)

Student - Lists the names of all tests, but only failing requirements. If necessary, a brief diagnostic is displayed showing why a requirement failed
Professor - Same as above, but for each individual student

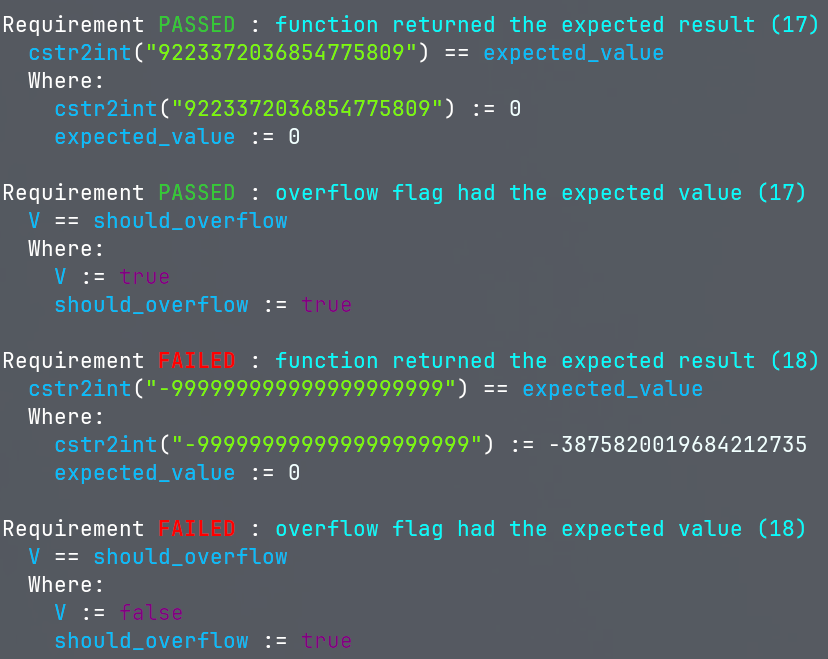

All

Student - Lists the result of all tests and requirements. More verbose diagnostics for both failing and passing tests are shown.
Professor - Same as above, but for each individual student

Extra

(Not yet implemented)

Max
